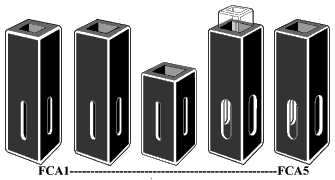

Starna® Adaptor for Fluorimeter Cell, type's 3 & 23 micro
 |
|
||||||||||||||
Designed
for use with
| Starna
Type |
Ext
length |
External | Internal | Fits Cell |
||
| Width | Height | Length | Width | |||
| No | mm | mm | mm | mm | mm | Type |
| FCA1 | 3.5 | 3.5 | 45 | 1 | 1 | 3.1.45 & 23.1.45 |
| FCA2 | 4.5 | 4.5 | 45 | 2 | 2 | 3.2.45 & 23.2.45 |
| FCA3.3 | 5.5 | 5.5 | 30 | 3 | 3 | 3.3.30 & 23.3.45 |
| FCA3 | 5.5 | 5.5 | 45 | 3 | 3 | 3.3.45 & 23.3.45 |
| FCA4 | 6.5 | 6.5 | 45 | 4 | 4 | 3.4.45 & 23.4.45 |
| FCA5 | 7.5 | 7.5 | 45 | 5 | 5 | 3.5.45 & 23.5.45 |
