Starna®

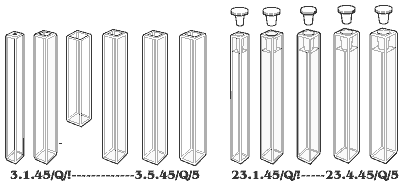

Fluorimeter Cells, type 3 Micro & 23 micro
with
stopper for use with the FCA Adaptor
 |
|
||||||||||||||
SOG
= Special optical Glass 320 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
Can be used with
virtually all Fluorimeters, Specially designed for use with the FCA adaptor
Type 3 Open top.
Type 23 supplied PTFE Liquid tight stopper (See
Accessories for spares) | Starna Type | Material Type |
Path
Length |
External | Internal | Nom Vol |
Adaptor Type |
|||
| length | Width | Height | Length | Width | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | |
| 3-1.45 | SOG/Q | 1 | 3.5 | 3.5 | 45 | 1 | 1 | 0.035 | FCA1 |
| 3-2.45 | SOG/Q | 2 | 4.5 | 4.5 | 45 | 2 | 2 | 0.140 | FCA2 |
| 3-3.30 | SOG/Q | 3 | 5.5 | 5.5 | 30 | 3 | 3 | 0.225 | FCA3.3 |
| 3-3.45 | SOG/Q | 3 | 5.5 | 5.5 | 45 | 3 | 3 | 0.315 | FCA3 |
| 3-4.45 | SOG/Q | 4 | 6.5 | 6.5 | 45 | 4 | 4 | 0.560 | FCA4 |
| 3-5.45 | SOG/Q | 5 | 7.5 | 7.5 | 45 | 5 | 5 | 0.875 | FCA5 |
| Starna Type | Material Type |
Path
Length |
External | Internal | Nom Vol |
Adaptor Type |
|||
| length | Width | Height | Length | Width | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | |
| 23-1.45 | SOG/Q | 1 | 3.5 | 3.5 | 45 | 1 | 1 | 0.031 | FCA1 |
| 23-2.45 | SOG/Q | 2 | 4.5 | 4.5 | 45 | 2 | 2 | 0.125 | FCA2 |
| 23-3.45 | SOG/Q | 3 | 5.5 | 5.5 | 45 | 3 | 3 | 0.280 | FCA3 |
| 23-4.45 | SOG/Q | 4 | 6.5 | 6.5 | 45 | 4 | 4 | 0.500 | FCA4 |
| 23-5.45 | SOG/Q | 5 | 7.5 | 7.5 | 45 | 5 | 5 | 0.780 | FCA5 |
