Starna® Demountable, open ended Cells
 |
|
||||||||||||||||||||||||
G
= Optical Glass 334 - 2500nm
SOG
= Special optical Glass 320 - 2500nm
PX = Borofloat 330 - 2500nm
H =
UV Silica 220 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
SX
= Far UV - IR Quartz (water free) 170 - 3500nm

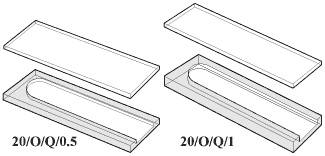

open ended, with two polished windows
| Starna Type |
Windows Material |
Path Length |
External | Sample chamber | Nominal Volume |
|||||
| Width | length | Height | Width | Length | Height | |||||
| No | choice | mm | mm | mm | mm | mm | mm | mm | ml | |
| 20/O | Q/I | 0.01 | 12.5 | 2.5 | 45 | 10 | 0.01 | 40 | 0.004 | |
| 20/O | Q/I | 0.1 | 12.5 | 2.6 | 45 | 10 | 0.1 | 40 | 0.040 | |
| 20/O | Q/I | 0.2 | 12.5 | 2.7 | 45 | 10 | 0.2 | 40 | 0.080 | |
| 20/O | Q/I | 0.5 | 12.5 | 3.0 | 45 | 10 | 0.5 | 40 | 0.190 | |
| 20/O | G/SOG/Q/I | 1 | 12.5 | 3.5 | 45 | 10 | 1 | 40 | 0.390 | |
