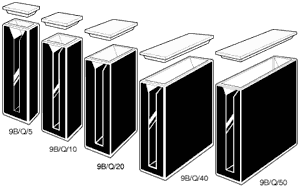

Starna® Semi-Micro Cells, Self Masking Black Walls
 |
|
||||||||||||||||||||
SOG=
Special optical Glass 320 - 2500nm
H
= UV Silica 220 - 2500nm
Q =
Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
SX
=Far UV - IR Quartz (water free) 170 - 3500nm
Black walls parallel to the light path are thickened, sample chamber is 4mm wide. |
|
Open top, supplied with a non-sealing PTFE cover |
|
note:Thick base (9mm) therefor the 9.B9 type cell cannot be used with
instruments having a Z dimension of 8.5mm |
| Starna Type | Material Type |
Path
Length |
External | Internal | Nom Vol |
No
of Polished |
|||
|---|---|---|---|---|---|---|---|---|---|
| Width | Length | Height | Width | Length | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | Windows |
| 9/B | SOG/Q/I/SX | 5 | 12.5 | 7.5 | 45 | 4 | 5 | 0.700 | 2 |
| 9/B | SOG/HH/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 1.400 | 2 |
| 9/B | SOG/Q/I/SX | 20 | 12.5 | 22.5 | 45 | 4 | 20 | 2.800 | 2 |
| 9/B | SOG/Q/I/SX | 40 | 12.5 | 42.5 | 45 | 4 | 40 | 5.600 | 2 |
| 9/B | SOG/Q/I/SX | 50 | 12.5 | 52.5 | 45 | 4 | 50 | 7.000 | 2 |
| 9/B/9 | SOG/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 1.160 | 2 |
