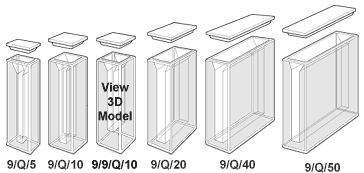

Starna® Semi-Micro Rectangular Cells
|
|
||||||||||||||||||
G =
Optical Glass 334 - 2500nm
SOG=
Special optical Glass 320 - 2500nm
PX = Borofloat 330 - 2500nm
H
= UV Silica 220 - 2500nm
Q =
Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
SX
=Far UV - IR Quartz (water free) 170 - 3500nm
Clear windows: Two
Walls parallel to the light path , sample chamber 4mm wide |
|
Pathlengths available: 5, 10, 20, 40, 50, mm
Open top, supplied with a non-sealing PTFE cover |
| Thick
base (9/9) for lower sample volumes (cannot be used with instruments
having a Z dimension of 8.5mm) |
| Starna Type | Material Type |
Path
Length |
External | Internal | Nom Vol |
No
of Polished |
|||
|---|---|---|---|---|---|---|---|---|---|
| Width | Length | Height | Width | Length | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | Windows |
| 9 | SOG/Q/I/SX | 5 | 12.5 | 7.5 | 45 | 4 | 5 | 0.700 | 2 |
| 9 | SOG/PX/H/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 1.400 | 2 |
| 9 | SOG/Q/I/SX | 20 | 12.5 | 22.5 | 45 | 4 | 20 | 2.800 | 2 |
| 9 | SOG/Q/I/SX | 40 | 12.5 | 42.5 | 45 | 4 | 40 | 5.600 | 2 |
| 9 | SOG/Q/I/SX | 50 | 12.5 | 52.5 | 45 | 4 | 50 | 7.000 | 2 |
| 9/9 | SOG/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 1.160 | 2 |
