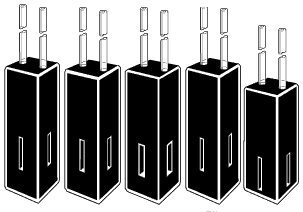

Starna® Fluorimeter Cells, Type 73-F/SS HPLC flow cells
 |
|
||||||||||||||||||
Q
= Far UV Quartz 170 - 2700nm
"Z"
dimension is critical as the cell sample compartment must be correctly aligned
in theinstrument light beam,
Fully masked cell
with rectangular aperture, dimensions see charts below, optimized for thebest flow characteristics for instruments with a narrow beam geometry
| Starna Catalog |
Path Length |
Exterior Height |
Sample chamber | 'Z' Dimension |
Nominal Volume |
Number Polished |
||
| Width | Length | Height | ||||||
| Number | mm | mm | mm | mm | mm | mm | ml | Windows |
| 73.1F/SS/Q | 1 | 45 | 1 | 1 | 11 | 8.5 | 0.008 | 3 |
| 73.1F/SS/Q | 1 | 45 | 1 | 1 | 11 | 15 | 0.008 | 3 |
| 73.15F/SS/Q | 1.5 | 45 | 1.5 | 1.5 | 11 | 8.5 | 0.018 | 3 |
| 73.15F/SS/Q | 1.5 | 45 | 1.5 | 1.5 | 11 | 15 | 0.018 | 3 |
| 73.3F/SS/Q | 3 | 45 | 3 | 3 | 11 | 8.5 | 0.40 | 3 |
| 73.3F/SS/Q | 3 | 45 | 3 | 3 | 11 | 15 | 0.40 | 3 |
