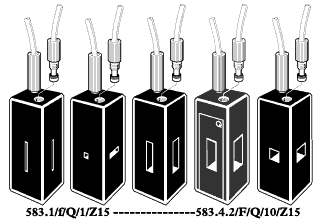

Starna® Fluorimeter Cells, Type 583F flow through
Fluorimeter Cells, Type 583F flow through
Far UV Quartz Q = Far UV Quartz 170 - 2700nm


3 Polished windows
1, 3 & 10 mm Pathlengths
Available 'Z' dimensions: 15 & 20 mm
Designed for use in spectrophotometers     with a beam width up to 3 mm
Fully masked cell with rectangular     aperture, optimized for the best flow     characteristics for instruments with a     narrow beam geometry
Z compatibility Quote
The internally threaded jacket matches the M6 threaded connectors supplied with the cell, to make a secure connection tested to 75 psi
Starna
Catalog		 Windows
Material 		Path
Length 		Exterior
Height		 Sample chamber 'Z'
Dimension		 Nominal
Volume		 Number
Polished
Width Length Height
Number Choice mm mm mm mm mm mm ml Windows
583.1-F Q 1 35 1 1 11 15 0.011 3
583.2.2-F Q 10 35/40 2 10 2 15/20 0.040 3
583.3-F Q 3 35 3 3 11 15 0.100 3
583.4-F Q 10 35 4 10 11 15 0.440 3
583.4.2-F Q 10 35/40 4 10 2 15/20 0.080 3
