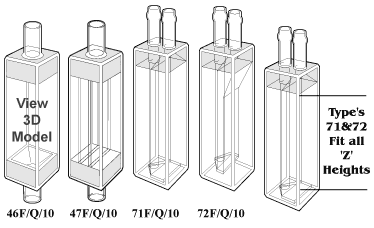

Starna® Fluorimeter Cells, Type's 46 47 71 & 72F flow through
 |
|
||||||||||||||||||
SOG
= Special optical Glass 320 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
Fluorescent
Absorptio measurement
| Starna Catalog |
Windows Material |
Path Length |
Exterior Height |
Sample chamber | Nominal Volume |
Number Polished |
|
| Width | Height | ||||||
| Number | Choice | mm | mm | mm | mm | ml | Windows |
| 46F | SOG/Q | 10 | 65 | 10 | 40 | 4.000 | 4 |
| 47F | SOG/Q | 10 | 65 | 4 | 40 | 1.600 | 4 |
| 47F/TC | Q | 10 | 65 | 4 | 40 | 1.600 | 4 |
| 71F | Q | 10 | 48 | 7 | 40 | 3.000 | 3 |
| 72F | Q | 10 | 48 | 4 | 40 | 1.800 | 3 |
