G
= Optical Glass 334 - 2500nm
SOG
= Special optical Glass 320 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
I = Near
infra red Quartz 220 3800nm
SX
= Far UV - IR Quartz (water free) 170 - 3500nm

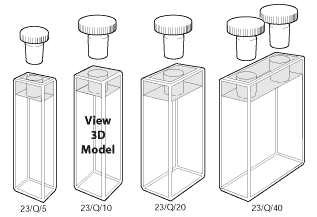

4 polished windows & base
| Starna Type | Material Type |
Path
Length |
External | Int
Width |
Nom Vol |
No
of Polished |
||
| length | Width | Height | ||||||
| No | Available | mm | mm | mm | mm | mm | ml | Windows |
| 23 | G/SOG/Q/I/SX | 5 | 7.5 | 12.5 | 48 | 10 | 1.700 | 4 |
| 23 | G/SOG/PX/Q/I/SX | 10 | 12.5 | 12.5 | 48 | 10 | 3.500 | 4 |
| 23 | G/SOG/Q/I | 20 | 22.5 | 12.5 | 48 | 10 | 7.000 | 4 |
| 23 | G/SOG/Q/I | 40 | 42.5 | 12.5 | 48 | 10 | 14.000 | 4 |
| 23 | G/SOG/Q/I | 50 | 52.5 | 12.5 | 48 | 10 | 17.500 | 4 |
| 23-LB | Q | 10 | 12.5 | 12.5 | 42 | 10 | 3.500 | 4 |
