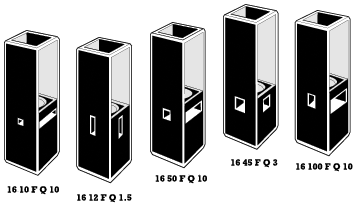

Starna® Fluorimeter Cell Sub-Micro
 View a 3D model of the 16.45-F Cell |
|
||||||||||||||||||
Q
= Far UV Quartz 170 - 2700nm
Sub-micro volumes 10 to 160 micro l
| Starna Catalog |
Z Height |
Path Length |
External |
Window |
nominal Volume |
|||
| Width | Length | Height | Width | Height | ||||
|
Number |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
ml |
| 16.10F4/Q | 8.5, 15, 20 | 10 | 12.5 | 12.5 | 45 | 1 | 1 | 0.010 |
|
16.10F-Q |
8.5, 15, 20 |
10 |
12.5 |
12.5 |
45 |
1 |
1 |
0.010 |
|
16.12F/Q |
8.5, 15, 20 |
1.5 |
12.5 |
12.5 |
45 |
1.5 |
5 |
0.012 |
|
16.40F/Q |
8.5, 15, 20 |
10 |
12.5 |
12.5 |
45 |
2 |
2 |
0.040 |
|
16.45F/Q |
8.5, 15, 20 |
3 |
12.5 |
12.5 |
45 |
3 |
5 |
0.045 |
| 16.4.3F/Q | 8.5, 15, 20 | 10 | 12.5 | 12.5 | 45 | 4 | 3 | 0.120 |
|
16.50F/Q |
8.5, 15, 20 |
10 |
12.5 |
12.5 |
45 |
2 |
2.5 |
0.050 |
|
16.100F/Q |
8.5, 15, 20 |
10 |
12.5 |
12.5 |
45 |
2 |
5 |
0.100 |
|
16.160F/Q |
8.5, 15, 20 |
10 |
12.5 |
12.5 |
45 |
2 |
8 |
0.160 |
