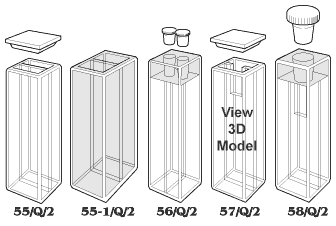

Starna® Tandem or Divided Fluorimeter Cells

fluorimeter cuvettes tandem or divided
Special optical Glass SOG = Special optical Glass 320 - 2500nm
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

All windows polished except 55-1/Q/2x10
55 & 57 Open top, supplied with
     a PTFE cover
56 & 58 supplied with liquid tight stopper/s
55 & 56 are for measuring 2 samples
     in series in seperate compartments
57 & 58 are designed for sample mixing      after in series measurement
Search Quote

Starna Type Material
Type 		Path
Length 		External Nom
Vol 		Polished
length Width Height
No Available mm mm mm mm ml Windows
55 Q 2 x 4.375 12.5 12.5 45 2 * 1.500 all
55-1 SOG/Q 2 x 10 23.75 12.5 45 2 * 3.500 .
56 Q 2 x 4.375 12.5 12.5 48 2 * 1.500 all
57 Q 2 x 4.375 12.5 12.5 45 2 * 1.000 all
58 Q 2 x 4.375 12.5 12.5 48 2 * 1.000 all
