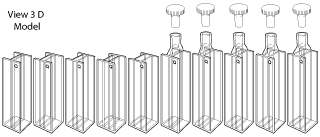

Starna® Dual Path Length or Fluorimeter Cells Type's 52 and 53
|
SOG = Special
optical Glass 320 - 2500nm |
|
Q = Far
UV Quartz 170 - 2700nm |
||
Window and
base thickness 1.25mm |
||
|
Can be used
with virtually all Fluorimeters |
||
|
Type52 Open
top, type 53 supplied with Stopper |
||
 |
 |
|
|
Volumes equivalent
to micro and semi micro Cells |
||
|
Pathlengths:
1 & 10, 2 & 10, 3 & 10, 4 & 10, 5 & 10mm |
||
| Starna Type | Material Type |
Path
Length |
External | Int
Width |
Nom Vol |
No
of Polished |
||
| length | Width | Height | ||||||
| No | Available | mm | mm | mm | mm | mm | ml | Windows |
| 52 | SOG/Q | 1 & 10 | 12.5 | 12.5 | 45 | 1 | 0.400 | 4 |
| 52 | SOG/Q | 2 & 10 | 12.5 | 12.5 | 45 | 2 | 0.800 | 4 |
| 52 | SOG/Q | 3 & 10 | 12.5 | 12.5 | 45 | 3 | 1.200 | 4 |
| 52 | SOG/Q | 4 & 10 | 12.5 | 12.5 | 45 | 4 | 1.600 | 4 |
| 52 | SOG/Q | 5 & 10 | 12.5 | 12.5 | 45 | 5 | 2.000 | 4 |
| 53 | SOG/Q | 1 & 10 | 12.5 | 12.5 | 48 | 1 | 0.400 | 4 |
| 53 | SOG/Q | 2 & 10 | 12.5 | 12.5 | 48 | 2 | 0.800 | 4 |
| 53 | SOG/Q | 3 & 10 | 12.5 | 12.5 | 48 | 3 | 1.200 | 4 |
| 53 | SOG/Q | 4 & 10 | 12.5 | 12.5 | 48 | 4 | 1.600 | 4 |
| 53 | SOG/Q | 5 & 10 | 12.5 | 12.5 | 48 | 5 | 2.000 | 4 |
