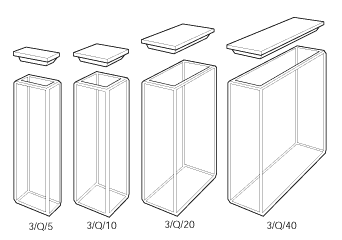

Starna® Standard Fluorimeter Cells, open top
 |
|
||||||||||||||||||||||||||||||
G = Optical Glass 334 - 2500nm
SOG
= Special optical Glass 320 - 2500nm
PX = Borofloat 330 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
I =
Near infra red Quartz 220 3800nm
SX = Far UV - IR Quartz (water
free) 170 - 3500nm
| Starna Type | Material Type |
Path
Length |
External | Internal Width |
Nom Vol |
No
of Polished |
||
| length | Width | Height | ||||||
| No | Available | mm | mm | mm | mm | mm | ml | Windows |
| 3 | Q | 2 | 4.5 | 12.5 | 45 | 10 | 0.800 | 4 + Base |
| 3 | G/SOG/Q/I/SX | 5 | 7.5 | 12.5 | 45 | 10 | 1.700 | 4 + Base |
| 3 | G/SOG/PX/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 10 | 3.500 | 4 + Base |
| 3 | G/SOG/Q/I | 20 | 22.5 | 12.5 | 45 | 10 | 7.000 | 4 + Base |
| 3 | G/SOG/Q/I | 40 | 42.5 | 12.5 | 45 | 10 | 14.000 | 4 + Base |
| 3 | G/SOG/Q/I | 50 | 52.5 | 12.5 | 45 | 10 | 17.500 | 4 + Base |
| 3.18 | Q | 18 | 22.5 | 22.5 | 50 | 18 | 14.600 | 4 + Base |
| 3.26 | Q | 26 | 30.5 | 30.5 | 50 | 26 | 30.500 | 4 + Base |
