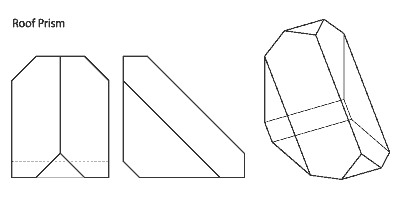

Roof prism
 |
|
| Hold either mouse button, to rotate the model |
| Standard | Custom | |
| Materials | All Glass types, Fused Silica & Infrared Crystal Materials | |
| Flatness |  /2 |
/10 |
| Surface Quality | 60 - 40 | 20 - 10 |
| Roof angle | ± 5 arc Sec | ± 2 arc Sec |
| Angle | ± 3 min | ± 5 arc Sec |
| Dimensions Tolerance | ± 0.15 | ± 0.01 |
| Dimensions Available | 1.5 mm to 150mm | 1.5 mm to 150mm |
| Coatings Available | on request | |
The roof prism deviates the incident beam through an angle of 90 degrees, whilst interchanging the left right portions of the image, equivalent to a 180-degree rotation about the optical axis.
The Ameci prism is essentially a right-angle prism whose hypotenuse has been replaced by a 90-degree roof.
Quotations can be provided for Single or Batch Custom production to customer specification.
