Standard |
Custom |
| Materials
|
All
Glass types, Fused Silica & Infrared Crystal Materials |
| Dimensions
Tolerance |
±
0.15 |
±
0.10 |
| Flatness |
 /2 |
/10 |
| Angle |
±
3 min |
±
5 arc Sec ± 5 arc Sec, Beam Deviation ± 30 arc Sec |
| Surface
Quality |
60
- 40 |
20
- 10 |
| Coatings
Available |
All
on request |

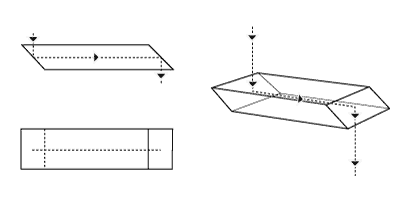

Rhomboid prisms
displace
the incident beam without angular deviation or orientation changes in
the image Quotations
can be provided for Single or Batch Custom production to customer specification.
|
