Q = Far
UV Quartz 170 - 2700nm |
Pathlengths
available: 10, 20, 50 & 100 mm |
|
|

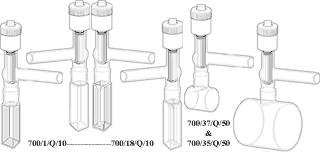

High vacuum
patented stopcock, PTFE threaded, for
perssure up to 5 bar |
|
|
Notes: Stopcock
can be fused to most quartz cells All
cells will withstand evacuation >10
Tor |
|
|

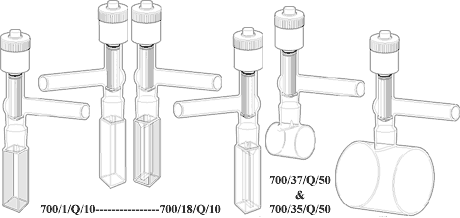

| Starna Type |
Path Length |
External | Side Arm | No
of Remarks |
||||
| Width | length | Height | I.D | O.D | Length | |||
| No | mm | mm | mm | mm | mm | mm | mm | |
| 700/1/Q | 10 | 12.5 | 12.5 | 135/150 | 10 | 13 | 50 | Macro |
| 700/3/Q | 10 | 12.5 | 12.5 | 135/150 | 10 | 13 | 50 | Fluorimeter |
| 700/9/Q | 10 | 12.5 | 12.5 | 135/150 | 10 | 13 | 50 | Semi micro |
| 700/18/Q | 10 | 12.5 | 12.5 | 135/150 | 10 | 13 | 50 | Micro |
| 700/35/Q | 50 | 50 | 54.0 | 135/150 | 10 | 13 | 50 | Cylindrical |
| 700/35/Q | 100 | 50 | 104 | 135/150 | 10 | 13 | 50 | Cylindrical |
| 700/37/Q | 10 | 22 | 12.5 | 115/130 | 10 | 13 | 50 | Cylindrical |
| 700/37/Q | 20 | 22 | 22.5 | 115/130 | 10 | 13 | 50 | Cylindrical |
| 700/37/Q | 40 | 22 | 42.5 | 115/130 | 10 | 13 | 50 | Cylindrical |
| 700/37/Q | 50 | 22 | 52.5 | 115/130 | 10 | 13 | 50 | Cylindrical |
| 700/37/Q | 100 | 22 | 102.5 | 115/130 | 10 | 13 | 50 | Cylindrical |
