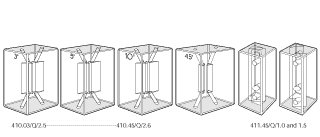

Starna® Flow through Refactometer cuvettes
 |
SOG= Special
optical Glass 320 - 2500nm |
Q = Far
UV Quartz 170 - 2700nm |
|
Pathlengths
available:1, 1.5, 2.5, 2.6 mm |
|
|
Clear windows:Three |
|
|
Primary use:
refractometry measurement in useable range (as above) |
|
|
|
Cell top: inlet
outlet bores for each chamber via special instrument holders as supplied
by the instrument manufacturers. |

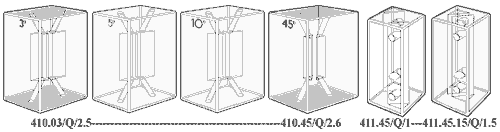

| Starna Type | Material Type |
Path Length |
Ext | Int | Nom
Vol |
No
of Polished |
||||
| Width | length | Height | Width | Length | Height | |||||
| No | Available | mm | mm | mm | mm | mm | mm | mm | ml | Windows |
| 410.03 | SOG/Q | 2.5 | 10 | 8 | 15 | 2.5 | 1.6 | 7 | 2 * 0.01 | 3 |
| 410.05 | SOG/Q | 2.5 | 10 | 8 | 15 | 2.5 | 1.6 | 7 | 2 * 0.01 | 3 |
| 410.10 | SOG/Q | 2.5 | 10 | 8 | 15 | 2.5 | 1.6 | 7 | 2 * 0.01 | 3 |
| 410.45 | SOG/Q | 2.6 | 10 | 8 | 15 | 2.5 | 1.6 | 7 | 2 * 0.01 | 3 |
| 411.45.1 | SOG/Q | 1 | 5 | 5.5 | 11 | 1.0 | 1.0 | 8 | 2*0.04 | 3 |
| 411.45.15 | SOG/Q | 1.5 | 5 | 5.5 | 11 | 1.0 | 1.5 | 8 | 2.0.09 | 3 |
