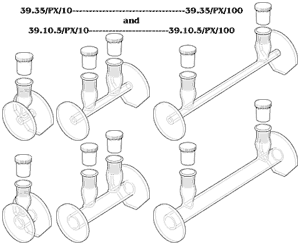

Starna® Polorimeter cells, Standard & semi-micro
Polorimeter cuvettes, Standard & semi-micro
Pyrex PX = Borofloat 330 - 2500nm

Two Clear windows:
Pathlengths 10, 50, 100 mm
Extended manufacturing process to ensure that
    these cells are free from birefringence effects
    which could affect the accuracy of measurements.




Quote

Starna
Type 		Material
Type 		Path
Length 		Ext Int
Diameter 		Nom
Vol
Diameter Length
No Available mm mm mm mm ml
39.35 PX 10 6 12.5 3.5 0.098
39.35 PX 50 6 52.5 3.5 0.490
39.35 PX 100 6 102.5 3.5 0.980
39.105 PX 10 13 12.5 10.5 0.890
39.105 PX 50 13 52.5 10.5 4.350
39.105 PX 100 13 102.5 10.5 8.700
