Starna® Dye laser Cuvettes
 |
Q = Far
UV Quartz 170 - 2700nm |
Pathlengths
available:10, 20, 40 mm |
|
|

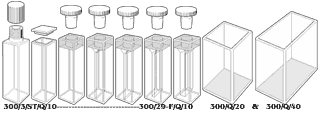

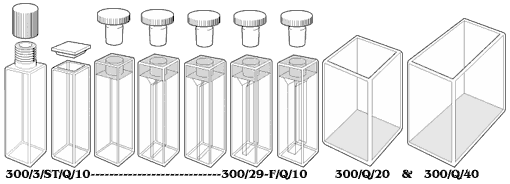

Dye laser cells
are manufactured with a surface flatness extending to the extreme edge of the cell. |
|
|
Usage
note whilst many of the florescent type cells supplied by us may be used
for laser applications, dye laser cells are polished to a more exacting standard
| Starna Type | Material Type |
Path Length |
External | Internal | Nominal Volume |
|||
| Width | length | Height | Width | Length | ||||
| No | Available | mm | mm | mm | mm | mm | mm | ml |
| 300/3/ST | Q | 10 | 12.5 | 12.5 | 45 | 10 | 10 | 3.500 |
| 300/3 | Q | 10 | 12.5 | 12.5 | 45 | 10 | 10 | 3.500 |
| 300/23 | Q | 10 | 12.5 | 12.5 | 48 | 10 | 10 | 3.500 |
| 300/29-F | Q | 10 | 12.5 | 12.5 | 48 | 4 | 10 | 1.400 |
| 300/28.05 | Q | 10 | 12.5 | 12.5 | 48 | 0.5 | 10 | 0.175 |
| 300/28.1 | Q | 10 | 12.5 | 12.5 | 48 | 1 | 10 | 0.350 |
| 300/28 | Q | 10 | 12.5 | 12.5 | 48 | 2 | 10 | 0.700 |
| 300 | Q | 20 | 26 | 26 | 40 | 20 | 20 | 12.000 |
| 300 | Q | 40 | 26 | 46 | 40 | 20 | 40 | 24.000 |
