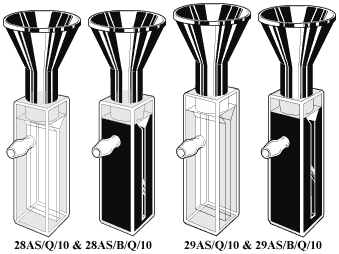

Starna® Suction outlet Cuvettes, micro & semi-micro
 |
|
||||||||||||||
SOG
= Special optical Glass 320 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
Pathlength 10 mm| Starna Type | Path
Length |
Material Choice |
External | Internal | Nominal Volume |
|||
| Width | length | Height | Width | Length | ||||
| No | mm | mm | mm | mm | mm | mm | ml | |
| 28AS | 10 | SOG/Q | 12.5 | 12.5 | 48 | 2 | 10 | 0.500 |
| 28AS/B | 10 | SOG/Q | 12.5 | 12.5 | 48 | 2 | 10 | 0.500 |
| 29AS | 10 | SOG/Q | 12.5 | 12.5 | 48 | 4 | 10 | 1.000 |
| 29AS/B | 10 | SOG/Q | 12.5 | 12.5 | 48 | 4 | 10 | 1.000 |
