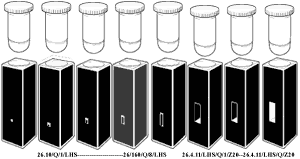

Starna® Sub-micro low head space (LHS) cells
Sub-micro low head space (LHS) cells
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

Pathlengths 1, 5 and 10 mm
Reduced NominalVolume from 10 µl to 160 µl.
Sealed by PTFE stopper providing a liquid tight seal
     (see accessories for spares)

Z compatibility Quote

Cell top round internal solid black top closed by a specialy profiled PTFE stopper, designed to reduce
      the volume of air above th esample by >95% thus reducing loss due to evaporation
Usage note Filling and empting with a pipette is recomended
To avoid possible meniscus errors; it may be necessary to increase the nominal sample volume by at least 20%

Starna
Type		 Material
Material 		"Z"
Height		 Path
Length		 External sample chamber Nominal
Volume
Width length Height Width Height
No choice mm mm mm mm mm mm mm ml
26.10/LHS Q 8.5,12,15,20 10 12.5 12.5 45 1 1 0.010
26.4.2/LHS Q 8.5,12,15,20 10 12.5 12.5 45 4 2 0.080
26.40/LHS Q 8.5,12,15,20 10 12.5 12.5 45 2 2 0.040
26.50/LHS Q 8.5,12,15,20 10 12.5 12.5 45 2 2.5 0.050
26.100/LHS Q 8.5,12,15,20 10 12.5 12.5 45 2 5 0.100
26.160/LHS Q 8.5,12,15,20 10 12.5 12.5 45 2 8 0.160
26.4.11/LHS Q 20 1 12.5 12.5 45 4 11 0.044
26.4.11/LHS Q 20 5 12.5 12.5 45 4 11 0.220
26.4.11/LHS Q 20 10 12.5 12.5 45 4 11 0.440
