Starna® Sub-micro and Ultra-micro Cells, with stopper

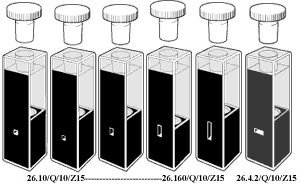

Sub-micro and Ultra-micro Cuvettes, with stopper
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

 Pathlength 10 mm
 Sealed by PTFE stopper providing a liquid tight seal
 Filling and empting with a pipette is recomended
 Reduced Nominal Volume from 10 µl to 160 µl.


Z compatibility Quote

To avoid possible meniscus errors; it may be necessary to increase the nominal sample volume by at least 20%.

Starna
Type
Window
Material
"Z"
Height
Path
Length
External sample chamber Nominal
Volume
Width length Height Width Height
No choice mm mm mm mm mm mm mm ml
26.10 Q 8.5,12,15,20 10 12.5 12.5 48 1 1 0.010
26.40 Q 8.5,12,15,20 10 12.5 12.5 48 2 2 0.040
26.4.2 Q 8.5,12,15,20 10 12.5 12.5 48 4 2 0.080
26.50 Q 8.5,12,15,20 10 12.5 12.5 48 2 2.5 0.050
26.100 Q 8.5,12,15,20 10 12.5 12.5 48 2 5 0.100
26.160 Q 8.5,12,15,20 10 12.5 12.5 48 2 8 0.160
