Starna® Rectangular Cells with Quartz to Borofloat graded seal (GS)

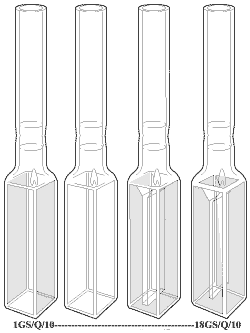

Rectangular cells with Quartz to Pyrex graded seal
Optical Glass G = Optical Glass 334 - 2500nm
Special optical Glass SOG = Special optical Glass 320 - 2500nm
Pyrex PX = Borofloat 330 - 2500nm
UV Silica H = UV Silica 220 - 2500nm
Far UV Quartz Q = Far UV Quartz 170 - 2700nm
Near infra red Quartz I = Near infra red Quartz 220 3800nm
Far UV - IR Quartz (water free) SX = Far UV - IR Quartz (water free) 170 - 3500nm

Pathlengths 1, 2, 5, 10 mm
GS Quartz to Borofloat graded seal fully fused to cell
Different diameters and length of GS available on request.
SBT Straight Bore tube available on request.

Quote

Starna
Type		 Material
Type 		Path
Length		 Internal
Width 		External Tube Nominal
Volume		 Remarks
g
Width length Height I.D O.D Length
No Available mm mm mm mm mm mm mm mm ml g
1/GS Q/I 1 10 12.5 3.5 115 8 10 70 0.400 Macro
1/GS Q/I 2 10 12.5 4.5 115 8 10 70 0.700 Macro
1/GS Q/I 5 10 12.5 7.5 115 8 10 70 1.700 Macro
1/GS Q/I 10 10 12.5 12.5 115 8 10 70 3.500 Macro
3/GS Q/I 10 10 12.5 12.5 115 8 10 70 3.500 Fluorimeter
9/GS Q/I 10 4 12.5 12.5 115 8 10 70 1.400 Semi micro
18/GS Q/I 10 2 12.5 12.5 115 8 10 70 0.700 Micro
