Starna® Anærobic Standard Rectangular & Fluorimeter Cells

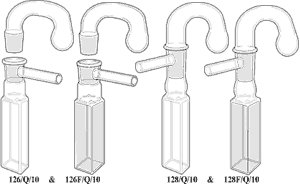

Anærobic Standard Rectangular & Fluorimeter cuvettes
Special optical Glass SOG = Special optical Glass 320 - 2500nm
Far UV Quartz Q = Far UV Quartz 170 - 2700nm
Near infra red Quartz I = Near infra red Quartz 220 3800nm

Pathlengths 2, 5 & 10 mm
Reservoir has ground cone with evacuation
    hole to line up with socket outlet hole

Search Quote

Type 126: Evacuation tube 3mm I.D., 5mm O.D., 30mm Length
Type 128: Evacuation tube 4mm I.D., 6mm O.D., 30mm Length
Note: Socket assembly can be fused to other rectangular cells on request

Starna
Type		 Material
Type		 Path
Length		 External Internal Nominal
Volume
Width length Height Width Length
No choice mm mm mm mm mm mm ml
126 SOG/Q/I 2 12.5 4.5 70 10 2 0.700
126 SOG/Q/I 5 12.5 7.5 70 10 5 1.75
126 SOG/Q/I 10 12.5 12.5 70 10 10 3.500
126-F SOG/Q/I 2 12.5 4.5 70 10 2 0.700
126-F SOG/Q/I 5 12.5 7.5 70 10 5 1.75
126-F SOG/Q/I 10 12.5 12.5 70 10 10 3.500
128 SOG/Q/I 2 12.5 4.5 120 10 2 0.700
128 SOG/Q/I 5 12.5 7.5 120 10 5 1.75
128 SOG/Q/I 10 12.5 12.5 120 10 10 3.500
128-F SOG/Q/I 2 12.5 4.5 120 10 2 0.700
128-F SOG/Q/I 5 12.5 7.5 120 10 5 1.75
128-F SOG/Q/I 10 12.5 12.5 120 10 10 3.500
