Starna® Micro Cells, stopper top, self masking

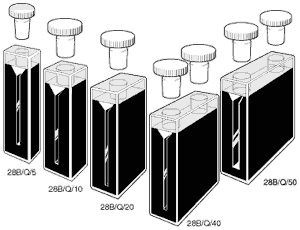

Micro Cuvetts, self masking with stopper top
Special optical Glass SOG= Special optical Glass 320 - 2500nm
UV Silica H = UV Silica 220 - 2500nm
Far UV Quartz Q = Far UV Quartz 170 - 2700nm
Near infra red Quartz I = Near infra red Quartz 220 3800nm
Far UV - IR Quartz (water free) SX =Far UV - IR Quartz (water free) 170 - 3500nm

Two Clear windows
Pathlengths 5, 10, 20, 40, 50mm
PTFE stopper in "ground type" joint.
    Liquid tight for up to 12 hours
    (see accessories for spare stoppers)
Search Quote

Walls parallel to the light path thickened, sample chamber is 2mm wide. The walls
    parallel to the light beam are black to improve sensitivity.
Note: Thick base (28/9B) can not be used with instruments having a Z dimension of 8.5mm

Starna Type Material
Type 		Path
Length 		External Internal Nom
Vol 		No of
Polished
Width Length Height Width Length
No Available mm mm mm mm mm mm ml Windows
28/B SOG/Q/I/SX 5 12.5 7.5 48 2 5 0.350 2
28/B SOG/HH/Q/I/SX 10 12.5 12.5 48 2 10 0.700 2
28/B SOG/Q/I/SX 20 12.5 22.5 48 2 20 1.400 2
28/B SOG/Q/I/SX 40 12.5 42.5 48 2 40 2.800 2
28/B Q/I/SX 50 12.5 52.5 48 2 50 3.500 2
28/B/9 SOG/Q/I/SX 10 12.5 12.5 48 2 10 0.580 2
