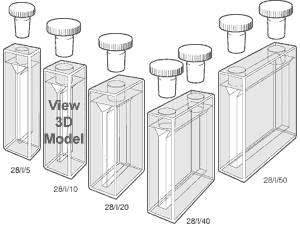

Starna® Micro Spectrophotometer Cells, stopper top
 |
|
||||||||||||||||||||||||
SOG= Special optical Glass 320 - 2500nm
PX = Borofloat 330 - 2500nm
H
= UV Silica 220 - 2500nm
Q =
Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
SX
=Far UV - IR Quartz (water free) 170 - 3500nm
Walls parallel
to the light path thickened, sample chamber is 2mm wide |
PTFE stopper
in "ground type" joint. Liquid tight for up to 12 hours |
(see accessories for spare stoppers) |
Note: Thick base
(28/9) can not be used with instruments having a Z dimension of 8.5mm |
| Starna Type | Material Type |
Path Length |
External | Internal | Nom Vol |
No
of Polished |
|||
| Width | Length | Height | Width | Length | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | Windows |
| 28 | SOG/Q/I/SX | 5 | 12.5 | 7.5 | 48 | 2 | 5 | 0.350 | 2 |
| 28 | SOG/PX/HH/Q/I/SX | 10 | 12.5 | 12.5 | 48 | 2 | 10 | 0.700 | 2 |
| 28 | SOG/Q/I/SX | 20 | 12.5 | 22.5 | 48 | 2 | 20 | 1.400 | 2 |
| 28 | SOG/Q/I/SX | 40 | 12.5 | 42.5 | 48 | 2 | 40 | 2.800 | 2 |
| 28 | SOG/Q/I/SX | 50 | 12.5 | 52.5 | 48 | 2 | 50 | 3.500 | 2 |
| 28/9 | SOG/Q/I/SX | 10 | 12.5 | 12.5 | 48 | 2 | 10 | 0.580 | 2 |
