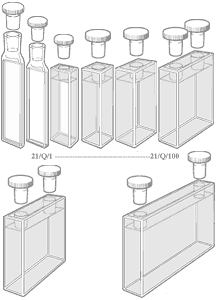

Starna® Standard Rectangular Cells with PTFE stopper
Standard Rectangular Cells with PTFE stopper
Optical Glass G = Optical Glass 334 - 2500nm
Special optical Glass SOG= Special optical Glass 320 - 2500nm
UV Silica H = UV Silica 220 - 2500nm
Far UV Quartz Q = Far UV Quartz 170 - 2700nm
Near infra red Quartz I = Near infra red Quartz 220 3800nm
Far UV - IR Quartz (water free) SX =Far UV - IR Quartz (water free) 170 - 3500nm

Two Clear windows
Pathlengths 1,2,5, 10, 20, 40, 50, 100mm
PTFE stopper in "ground type" joint. Liquid tight
     for up to 12 hours (see accessories for spare stoppers)
Standard window and wall thickness (1.25mm)
     for other dimensions on see charts below
Can be used with spectrophotometers and colorimeters
Search Quote

Starna Type Material
Type 		Path
Length 		External Internal Nom
Vol 		No of
Polished
Width Length Height Width Length
No Available mm mm mm mm mm mm ml Windows
21 G/SOG/Q/I/SX 1 12.5 3.5 55 10 1 0.400 2
21 G/SOG/Q/I/SX 2 12.5 4.5 55 10 2 0.700 2
21 G/SOG/Q/I/SX 5 12.5 7.5 48 10 5 1.700 2
21 G/SOG/HH/Q/I/SX 10 12.5 12.5 48 10 10 3.500 2
21 G/SOG/Q/I/SX 20 12.5 22.5 48 10 20 7.000 2
21 G/SOG/Q/I/SX 40 12.5 42.5 48 10 40 14.000 2
21 G/SOG/Q/I/SX 50 12.5 52.5 48 9.5 50 17.500 2
21 G/SOG/Q/I/SX 100 12.5 102.5 48 9 100 35.000 2
21/N Q 10 12.5 12.5 48 10 10 3.500 2
