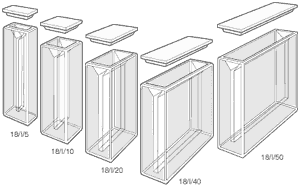

Starna® Micro Rectangular Cells
 |
|
||||||||||||||||||||
SOG = Special optical Glass 320 - 2500nm
PX = Borofloat 330 - 2500nm
H = UV Silica 220 - 2500nm
Q = Far UV Quartz 170 - 2700nm
I = Near infra red Quartz 220 3800nm
SX = Far UV - IR Quartz (water free) 170 - 3500nm
Open top, supplied
with a non-sealing PTFE cover (see
Accessories for spare lids) |
|
|
Thick base
(18/9) can not be used with instruments having a Z dimension of 8.5mm
base = 9mm |
| Starna Type | Material Type |
Path
Length |
External | Internal | Nom Vol |
No
of Polished |
|||
|---|---|---|---|---|---|---|---|---|---|
| Width | Length | Height | Width | Length | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | Windows |
| 18 | SOG/Q/I/SX | 5 | 12.5 | 7.5 | 45 | 2 | 5 | 0.350 | 2 |
| 18 | SOG/PX/H/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 2 | 10 | 0.700 | 2 |
| 18 | SOG/Q/I/SX | 20 | 12.5 | 22.5 | 45 | 2 | 20 | 1.400 | 2 |
| 18 | SOG/Q/I/SX | 40 | 12.5 | 42.5 | 45 | 2 | 40 | 2.800 | 2 |
| 18 | SOG/Q/I/SX | 50 | 12.5 | 52.5 | 45 | 2 | 50 | 3.500 | 2 |
| 18/9 | SOG/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 2 | 10 | 0.580 | 2 |
