Starna®Sub-Micro Cells - volumes from 10 to 160 microliter

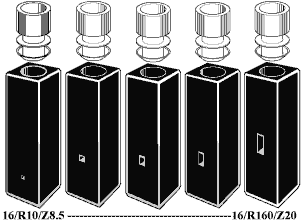

Low volume, fully masked Sub-Micro cuvettes
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

Clear windows:Two
Pathlengths 1, 40, 50, 100 & 160 0mm
Sample volumes:10, 40, 50, 100, 160 microliter
Small sample chamber, 2mm wide, fully
    masked standard cell



Z compatibility Quote

Solid Black Quartz top rounded internal cross section closed by a vaned polyethylene liquid tight stopper. (see accessories for spares)
Starna
Catalog 		Path
Length 		Z
Height 		External Sample Chamber Nominal Volume
Width Length Height Width Length
Number mm mm mm mm mm mm mm ml
16R/10/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 1 1 0.010
16R/40/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 2 0.040
16R/50/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 2.5 0.050
16R/100/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 5 0.100
16R/160/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 8 0.160
