Starna®Sub-Micro Cells - volumes from 10 to 160 microliter

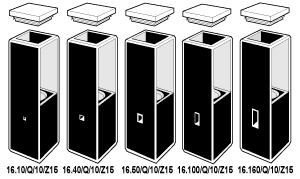

low volume Sub-Micro cuvettes Far UV Quartz Q = Far UV Quartz 170 - 2700nm

Small sample chamber, 1mm wide, fully masked cell
Pathlengths 10mm
Clear windows:Two
Sample volumes:10, 40, 50, 100, 160 microliter
Open top, supplied with a PTFE (non-sealing) and polyethylene (liquid tight) cover (see accessories)
Z compatibility Quote

Starna
Catalog 		Path
Length 		Z
Height 		External Sample Chamber Nominal Volume
Width Length Height Width Length
Number mm mm mm mm mm mm mm ml
16.10/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 1 1 0.010
16.40/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 2 0.040
16.50/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 2.5 0.050
16.100/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 5 0.100
16.160/Q/10 10 8.5,12, 15, 20 12.5 12.5 45 2 8 0.160
Note:To avoid possible meniscus errors; it may be necessary to increase the nominal sample volume by at least 20%
