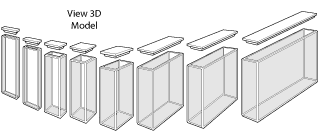

Starna® Standard Rectangular Cells Type 1
|
|
|||||||||||||||
 |
 |
|||||||||||||||
Pathlengths: 1, 2, 5, 10, 20, 40, 50, 100mm |
Two Clear windows: |
|||||||||||||||
|
Instrument: Can be used with spectrophotometers and colorimeters |
||||||||||||||||
|
Cell top Open top, supplied with a non-sealing PTFE cover (see
Accessories spares) |
||||||||||||||||
G = Optical Glass 334 - 2500nm
SOG = Special optical Glass
320 - 2500nm
PX = Borofloat 330 - 2500nm
H = UV Silica 220 - 2500nm
Q = Far UV Quartz 170 - 2700nm
I = Near infra red Quartz 220
3800nm
SX = Far UV - IR Quartz (water
free) 170 - 3500nm| Starna Type | Material Type |
Path
Length |
External | Internal | Nom Vol |
No
of Polished |
|||
|---|---|---|---|---|---|---|---|---|---|
| Width | Length | Height | Width | Length | |||||
| No | Available | mm | mm | mm | mm | mm | mm | ml | Windows |
| 1 | G/SOG/Q/I/SX | 1 | 12.5 | 3.5 | 45 | 10 | 1 | 0.400 | 2 |
| 1 | G/SOG/Q/I/SX | 2 | 12.5 | 4.5 | 45 | 10 | 2 | 0.700 | 2 |
| 1 | G/SOG/Q/I/SX | 5 | 12.5 | 7.5 | 45 | 10 | 5 | 1.700 | 2 |
| 1 | G/SOG/PX/HH/Q/I/SX | 10 | 12.5 | 12.5 | 45 | 10 | 10 | 3.500 | 2 |
| 1 | G/SOG/Q/I/SX | 20 | 12.5 | 22.5 | 45 | 10 | 20 | 7.000 | 2 |
| 1 | G/SOG/Q/I/SX | 40 | 12.5 | 42.5 | 45 | 10 | 40 | 14.000 | 2 |
| 1 | G/SOG/Q/I/SX | 50 | 12.5 | 52.5 | 45 | 9.5 | 50 | 17.500 | 2 |
| 1 | G/SOG/Q/I/SX | 100 | 12.5 | 102.5 | 45 | 9 | 100 | 35.000 | 2 |
| 1.1 | G | 10 | 12.5 | 12.5 | 100 | 10 | 10 | 10.000 | 2 |
| 1.7 | G | 10 | 12.5 | 12.5 | 70 | 10 | 10 | 6.500 | 2 |
| 1B | Q (Black walled) | 10 | 12.5 | 12.5 | 45 | 10 | 10 | 3.500 | 2 |
