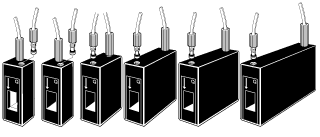

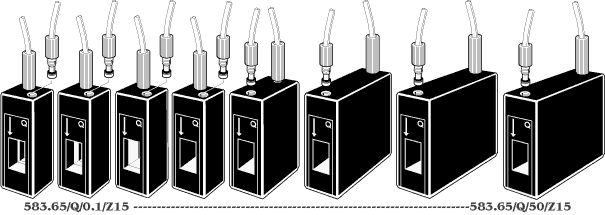

Starna® Flow Cells, wide window
 |
Q = Far UV Quartz 170 - 2700nm |
|
Two Clear windows |
||
|
Exteriour Height Z15 = 35mm Z20 = 40mm |
||
|
Pathlengthse:0.01,0.05,0.1, 0.2, 0.5, 1 2, 5, 10, 20, 40, 50,100mm |
||
 |
 |
|
|
Physical Configuration: Fully masked cell with rectangular aperture,
optimised for the lowest volume for instruments with a wide beam geometry |
||
|
Can be used with spectrophotometers and colorimeters |
||
| Starna Catalog | Path Length | Exterior | Interior | 'Z' Dimension | Nominal Volume | Number Polished | ||||
| Width | Length | Height | Width | Length | Height | |||||
| Number | mm | mm | mm | mm | mm | mm | mm | mm | ml | Windows |
| 583.65/Q | 0.1 | 12.5 | 12.5 | 35/40 | 6.5 | 0.1 | 11 | 15 & 20 | 0.029 | 2 |
| 583.65/Q | 0.2 | 12.5 | 12.5 | 35/40 | 6.5 | 0.2 | 11 | 15 & 20 | 0.036 | 2 |
| 583.65/Q | 0.5 | 12.5 | 12.5 | 35/40 | 6.5 | 0.5 | 11 | 15 & 20 | 0.072 | 2 |
| 583.65/Q | 1 | 12.5 | 12.5 | 35/40 | 6.5 | 1 | 11 | 15 & 20 | 0.072 | 2 |
| 583.65/Q | 2 | 12.5 | 12.5 | 35/40 | 6.5 | 2 | 11 | 15 & 20 | 0.290 | 2 |
| 583.65/Q | 5 | 12.5 | 12.5 | 35/40 | 6.5 | 5 | 11 | 15 & 20 | 0.360 | 2 |
| 583.65/Q | 10 | 12.5 | 12.5 | 35/40 | 6.5 | 10 | 11 | 15 & 20 | 0.720 | 2 |
| 583.65/Q | 20 | 12.5 | 22.5 | 35/40 | 6.5 | 20 | 11 | 15 & 20 | 1.440 | 2 |
| 583.65/Q | 40 | 12.5 | 42.5 | 35/40 | 6.5 | 40 | 11 | 15 & 20 | 2.900 | 2 |
| 583.65/Q | 50 | 12.5 | 52.5 | 35/40 | 6.5 | 50 | 11 | 15 & 20 | 3.600 | 2 |
| 583.65/Q | 100 | 12.5 | 102.5 | 35/40 | 6.5 | 100 | 11 | 15 & 20 | 7.200 | 2 |
