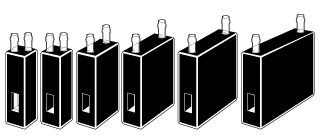

Starna® Flow Cells, Type 73.4 series Semi-Micro, Medium aperture
 |
 SOG
= Special optical Glass 320 - 2500nm |
|
 Q
= Far UV Quartz 170 - 2700nm |
||
 SX
= Far UV - IR Quartz (water free)
170 - 3500nm |
||

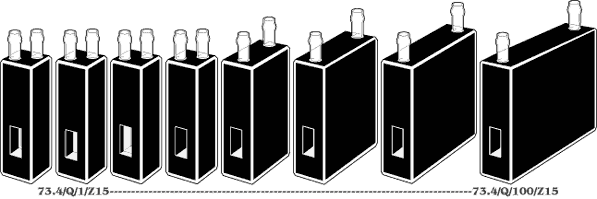

Path lengths :1, 2, 5, 10, 20, 40, 50, 100 mm |
||
|
Available 'Z' : 8.5, 15 & 20 mm |
||
|
Aperture dimensions:4 mm wide x 11 mm high |
||
 |
 |
|
|
"Z" dimension is critical as the cell sample compartment must be correctly
aligned in the instrument light beam, see chart below |
||
|
Fully masked cell with rectangular aperture, optimized for the best
flow characteristics for instruments with a narrow beam geometry of up to 3.5 mm |
||
|
Connections:Glass or quartz tubulations as appropriate, permanently
fused to the top of the cell, allow for simple and secure push on or sleeved connections using flexible tubing such as silicone rubber or PVC |
||
| Starna Catalog | Path Length | Exterior | Sample Chamber | 'Z' | Nominal Volume | Number Polished | ||||
| Width | Length | Height | Width | Length | Height | Dimension | ||||
| Number | mm | mm | mm | mm | mm | mm | mm | mm | ml | Windows |
| 73.4/Q | 1 | 12.5 | 12.5 | 45 | 4 | 1 | 11 | 8.5, 15, 20 | 0.045 | 2 |
| 73.4/Q | 2 | 12.5 | 12.5 | 45 | 4 | 2 | 11 | 8.5, 15, 20 | 0.090 | 2 |
| 73.4/Q | 5 | 12.5 | 12.5 | 45 | 4 | 5 | 11 | 8.5, 15, 20 | 0.225 | 2 |
| 73.4/Q | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 11 | 8.5, 15, 20 | 0.450 | 2 |
| 73.4/Q | 20 | 12.5 | 22.5 | 45 | 4 | 20 | 11 | 8.5, 15, 20 | 0.900 | 2 |
| 73.4/Q | 40 | 12.5 | 22.5 | 45 | 4 | 40 | 11 | 8.5, 15, 20 | 1.800 | 2 |
| 73.4/Q | 50 | 12.5 | 52.5 | 45 | 4 | 50 | 11 | 8.5, 15, 20 | 2.250 | 2 |
| 73.4/SOG | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 11 | 8.5, 15, 20 | 0.450 | 2 |
| 73.4/SX | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 11 | 8.5, 15, 20 | 0.450 | 2 |
