SOG
= Special optical Glass 320 - 2500nm |
Q=
Far UV Quartz 170 - 2700nm |
| |
Two Clear
windows |
|
Path
lengths 10, 20, 40, 50, 100 mm |
| |
 |
 |
|
|
'Z' dimensions:
8.5,15 & 20mm ("Z" dimension is critical as the
cell sample compartment must be correctly aligned) |
|
Designed for
use in spectrophotometers with a small collimated or focused beam |
|
M6 screw Connectors
(see accessories
for spares) |
|

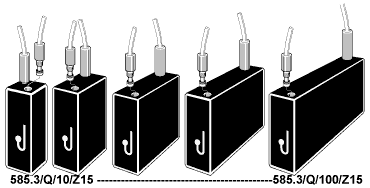

Fully masked
cell with round aperture, (dimensions see charts below), optimized
for |
| the
best flow characteristics, for instruments with a narrow beam geometry
|
| Starna
Catalog
|
Material
Choice
|
Path
Length
|
Exterior
|
Sample
Chamber |
'Z'
Dimension
|
Nominal
Volume
|
| Width
|
Length
|
Height
|
Diameter |
Length
|
| Number
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
ml
|
| 585.3
|
SOG/Q
|
10
|
12.5
|
12.5
|
35
|
3
|
10
|
8.5,
15, 20 |
0.070
|
| 585.3
|
SOG/Q
|
20
|
12.5
|
12.5
|
35
|
3
|
20
|
8.5,
15, 20 |
0.140
|
| 585.3
|
SOG/Q
|
40
|
12.5
|
12.5
|
35
|
3
|
40
|
8.5,
15, 20 |
0.280
|
| 585.3
|
SOG/Q
|
50
|
12.5
|
12.5
|
35
|
3
|
50
|
8.5,
15, 20 |
0.350
|
| 585.3
|
SOG/Q
|
100
|
12.5
|
12.5
|
35
|
3
|
100
|
8.5,
15, 20 |
0.700
|
|
