Q =
Far UV Quartz 170 - 2700nm |
| |
Two Clear windows |
|
Available 'Z' 8.5, 15 & 20 mm |
|
Pathlengths: 0.01,0.05, 0.1, 0.2, 0.5, 1, 2 mm |
|
M6 threaded connectors (see accessories) |
|
Long aperture |
 |
 |
|
Fully masked cell with rectangular aperture, optimized for the best
flow characteristics
for instruments with a narrow beam geometry |
|
Path lengths of 0.5mm or less incorporate by-pass tubes to avoid back
pressure and assist laminar flow through the sample compartment |
|
Profiled sample
compartment to optimise flow characteristics, reduces carry over and
bubble retention. |
Starna
Catalog |
Path
Length
|
Exterior
|
Sample
Chamber |
'Z'
Dimension
|
Nominal
Volume
|
Number
Polished
|
| Width
|
Length
|
Height
|
Width
|
Height
|
| Number
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
ml
|
Windows
|

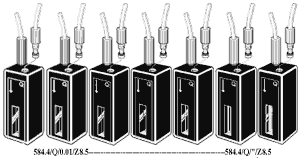

| 584.4/Q
|
0.01
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
0.036
|
2
|
| 584.4/Q
|
0.05
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
0.039
|
2
|
| 584.4/Q
|
0.1
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
0.041
|
2
|
| 584.4/Q
|
0.2
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
00047
|
2
|
| 584.4/Q
|
0.5
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
0.095
|
2
|
| 584.4/Q
|
1
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
0.120
|
2
|
| 584.4/Q
|
2
|
12.5
|
12.5
|
35
|
4
|
17.5
|
8.5,
15, 20 |
0.240
|
2
|
|
