Starna® Flow Cells, Type 583.4 series Semi-Micro, Medium aperture, screw in connectors

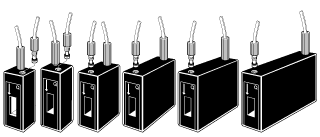

Flow Cells, Type 583.4 Far UV Quartz Q = Far UV Quartz 170 - 2700nm

Available 'Z' dimensions:8.5, 15 & 20mm
Path Lengths: 5, 10, 20, 40, 50, 100 mm
Clear windows:2
Aperture dimensions:4 mm wide x 11 mm high
Z compatibility Quote
Physical Configuration:Fully masked cell with rectangular aperture, dimensions see charts
     below, optimized for the best flow characteristics for instruments with a narrow beam geometry
Instrument:Designed for use in spectrophotometers with a beam width up to 3 mm
Usage note:"Z" dimension is critical as the cell compartment must be correctly aligned
     in the instrument light beam, see chart below

Connections:The internally threaded jacket matches the M6 threaded connectors
     supplied with the cell, to make a secure connection tested to 75 psi (see accessories for spares)
Starna Catalog Path Length Exterior Interior 'Z' Nominal Volume Number Polished
Width Length Height Width Length Height Dimension
Number mm mm mm mm mm mm mm mm ml Windows
583.4/Q 5 12.5 12.5 35 4 5 11 8.5 / 15 / 20 0.220 2
583.4/Q 10 12.5 12.5 35 4 10 11 8.5 / 15 / 20 0.440 2
583.4/Q 20 12.5 22.5 35 4 20 11 8.5 / 15 / 20 0.880 2
583.4/Q 40 12.5 22.5 35 4 40 11 8.5 / 15 / 20 1.760 2
583.4/Q 50 12.5 52.5 35 4 50 11 8.5 / 15 / 20 2.200 2
583.4/Q 100 12.5 102.5 35 4 100 11 8.5 / 15 / 20 4,400 2
