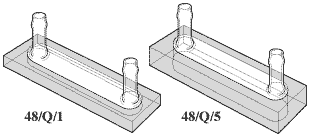

Starna® Flow Cells, Short part length
 |
|
||||||||||||||||
G =
Optical Glass 334 - 2500nm
Q =
Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
2 Clear windows
| Starna Catalog |
Path Length |
Window Material |
Exterior | Sample Chamber | Nominal Volume |
||||
| Width | Length | Height | Width | Length | Height | ||||
| Number | mm | Choice | mm | mm | mm | mm | mm | mm | ml |
| 48 | 0.01 | Q/I | 12.5 | 2.6 | 45 | 8 | 0.01 | 40 | 0.003 |
| 48 | 0.1 | Q/I | 12.5 | 2.6 | 45 | 8 | 0.1 | 40 | 0.030 |
| 48 | 0.2 | Q/I | 12.5 | 2.7 | 45 | 8 | 0.2 | 40 | 0.060 |
| 48 | 0.5 | Q/I | 12.5 | 3.0 | 45 | 8 | 0.5 | 40 | 0.150 |
| 48 | 1 | G/Q/I | 12.5 | 3.5 | 45 | 8 | 1 | 40 | 0.300 |
| 48 | 2 | G/Q/I | 12.5 | 4.5 | 45 | 8 | 2 | 40 | 0.600 |
| 48 | 5 | G/Q/I | 12.5 | 7.5 | 45 | 8 | 5 | 40 | 1.560 |
