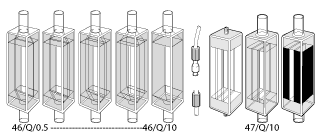

Starna® Flow Cells, in line
 |

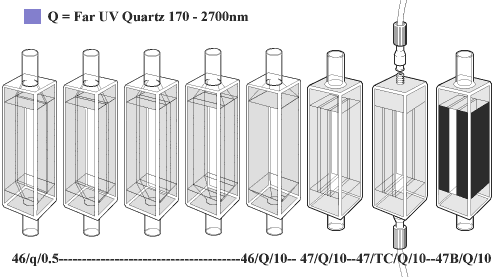

Q = Far UV Quartz 170 -
2700nm |
Two Clear windows |
|
|
Pathlengths: 0.5, 1, 2, 5 & 10mm |
|
|
Type 47 also available with TC threaded connectors |
|
 |
|
Connections:Tubulations 2mm I,D. 4mm O,D 10mm Long (see
accessories for spares) |
| Starna Catalog |
Path Length |
Exterior | Internal
Width |
Nominal
Volume |
||
| Width | Length | Height | ||||
| Number | mm | mm | mm | mm | mm | ml |
| 46/Q | 0.5 | 12.5 | 12.5 | 65 | 10 | 0.185 |
| 46/Q | 1 | 12.5 | 12.5 | 65 | 10 | 0.370 |
| 46/Q | 2 | 12.5 | 12.5 | 65 | 10 | 0.740 |
| 46/Q | 5 | 12.5 | 12.5 | 65 | 10 | 1.850 |
| 46/Q | 10 | 12.5 | 12.5 | 65 | 10 | 3.700 |
| 47/Q | 10 | 12.5 | 12.5 | 65 | 4 | 1.480 |
| 47/TC/Q | 10 | 12.5 | 12.5 | 65 | 4 | 1.480 |
| 47B/Q | 10 | 12.5 | 12.5 | 65 | 4 | 1.480 |
