Starna® Flow Cells, in line or microscope analysis

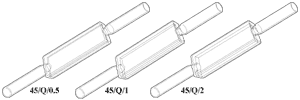

Flow Cells, in line or microscope analysis
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

4 Clear windows:
Pathlengths0.1, 0.2, 0.5, 1 & 2 mm
Also Available as Type 45 Fluorimeter Cell
Search Quote
Connections:Tubulations 5mm I,D. 7mm O,D 25mm Long
Starna
Catalog 		Path
Length 		Exterior Internal
Width 		Nominal
Volume
Width Length Height
Number mm mm mm mm mm ml
45/Q 0.1 12.5 2.6 45 + Tubes 10 0.045
45/Q 0.2 12.5 2.7 45 + Tubes 10 0.090
45/Q 0.5 12.5 3 45 + Tubes 10 0.225
45/Q 1 12.5 3.5 45 + Tubes 10 0.450
45/Q 2 12.5 4.5 45 + Tubes 10 0.900
