Starna® Cylindrical Cells, Constant Temperature

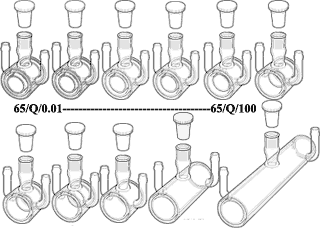

Cylindrical constant temperature Cells
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

Two Clear windows:
Pathlengths 0.01, 0.1, 0.5, 1, 2, 5, 10, 20,
      50 & 100mm
PTFE Liquid tight stopper
see accessories for spares
maximised surface area contact for
     temperature control


Search Quote

Starna Type Material
Type 		Path Length Ext Sample Chamber Overall
Height 		Nom Vol No of
Polished
Diameter Length Diameter Length
No Available mm mm mm mm mm mm ml Windows
65 Q 0.01 22 20 10 0.01 32 0.737 2
65 Q 0.10 22 20 10 0.1 32 0.747 2
65 Q 0.50 22 20 10 0.5 32 0.792 2
65 Q 1 22 20 10 1 32 0.849 2
65 Q 2 22 20 10 2 32 0.962 2
65 Q 5 22 20 10 5 32 1.300 2
65 Q 10 22 12.5 14 10 32 0.825 2
65 Q 20 22 22.5 14 20 32 1.650 2
65 Q 50 22 52.5 14 50 32 4.125 2
65 Q 100 22 102.5 14 100 32 8.250 2
