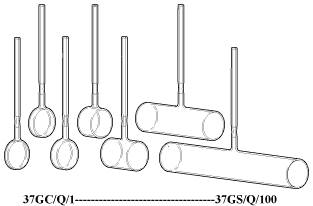

Starna® Cylindrical Cells, with Quartz to Borofloat graded seal(GS)
 |
|
||||||||||||||||||||||
Q
= Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
Pathlengths1, 2, 5, 10, 20, 50, 100mm
| Starna Type | Material Type |
Path Length | External | Internal | Nom Vol | No
of Polished |
||
| Diameter | Length | Diameter | Length | |||||
| No | Available | mm | mm | mm | mm | mm | ml | Windows |
| 37/GS | Q/I | 1 | 22 | 3.5 | 19 | 1 | 0.28 | 2 |
| 37/GS | Q/I | 2 | 22 | 4.5 | 19 | 2 | 0.56 | 2 |
| 37/GS | Q/I | 5 | 22 | 7.5 | 19 | 5 | 1.40 | 2 |
| 37/GS | Q/I | 10 | 22 | 12.5 | 19 | 10 | 2.80 | 2 |
| 37/GS | Q/I | 20 | 22 | 22.5 | 19 | 20 | 5.60 | 2 |
| 37/GS | Q/I | 50 | 22 | 52.5 | 19 | 50 | 14.00 | 2 |
| 37/GS | Q/I | 100 | 22 | 102.5 | 19 | 100 | 28.00 | 2 |
