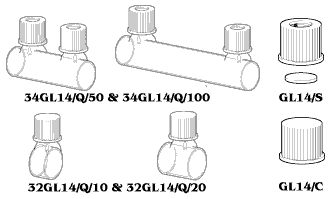

Starna® Cylindrical Anærobic with screw Cap(s) GL14
 |
|
||||||||||||||||||||
SOG
= Special optical Glass 320 - 2500nm
PX = Borofloat 330 - 2500nm
H = UV Silica 220 - 2500nm
Q
= Far UV Quartz 170 - 2700nm
I
= Near infra red Quartz 220 3800nm
SX=
Far UV - IR Quartz (water free) 170 - 3500nm
Cell top: GL14Screw Cap to withstand up 5 Bar * 1 for type 32 or dual on type 34 |
GL14c: Closed Cap .(see accessories
for spare stoppers) |
Gl14s:Septum cap enables filling, sample extraction or gas flow via syringe needles . (see accessories for spares ) |
| Starna Type | Material Type |
Path Length | External | Internal | Nom Vol | No
of Polished |
||
| Diameter | Length | Diameter | Length | |||||
| No | Available | mm | mm | mm | mm | mm | ml | Windows |
| 32GL14c | SOG/PX/H/Q/I/SX | 10 | 22 | 12.5 | 19 | 10 | 2.800 | 2 |
| 32GL14s | SOG/PX/H/Q/I/SX | 10 | 22 | 12.5 | 19 | 10 | 2.800 | 2 |
| 32GL14c | SOG/PX/H/Q/I/SX | 20 | 22 | 22.5 | 19 | 20 | 5.600 | 2 |
| 32GL14s | SOG/PX/H/Q/I/SX | 20 | 22 | 22.5 | 19 | 20 | 5.600 | 2 |
| 34GL14c | SOG/PX/H/Q/I/SX | 50 | 22 | 52.5 | 19 | 50 | 14.100 | 2 |
| 34GL14s | SOG/PX/H/Q/I/SX | 50 | 22 | 52.5 | 19 | 50 | 14.100 | 2 |
| 34GL14c | SOG/PX/H/Q/I/SX | 100 | 22 | 102.5 | 19 | 100 | 28.200 | 2 |
| 34GL14s | SOG/PX/H/Q/I/SX | 100 | 22 | 102.5 | 19 | 100 | 28.200 | 2 |
