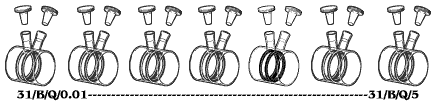

Starna® Cylindrical Cells, Twin port, Micro Short Pathlength
 |
|
||||||||||
Q
= Far UV Quartz 170 - 2700nm
Pathlengths available:
0.01,0.05, 0.1, 0.2, 0.5, 1, 2 & 5mm |
Aperture:15mm
diameter through sample compartment |
Cell top: supplied
with PTFE
Liquid tight stopper see
accessories for spares |
| Starna Type | Material Type |
Path Length | External | Internal | Nom
Vol |
No
of Polished |
||
| Diameter | Length | Diameter | Length | |||||
| No | Available | mm | mm | mm | mm | mm | ml | Windows |
| 31/B | Q | 0.01 | 22 | 22.5 | 10 | 0.01 | 0.140 | 2 |
| 31/B | Q | 0.05 | 22 | 22.5 | 10 | 0.05 | 0.151 | 2 |
| 31/B | Q | 0.10 | 22 | 22.5 | 10 | 0.1 | 0.165 | 2 |
| 31/B | Q | 0.20 | 22 | 22.5 | 10 | 0.2 | 0.194 | 2 |
| 31/B | Q | 0.50 | 22 | 22.5 | 10 | 0.5 | 0.278 | 2 |
| 31/B | Q | 1 | 22 | 22.5 | 10 | 1 | 0.420 | 2 |
| 31/B | Q | 2 | 22 | 22.5 | 9.5 | 2 | 0.703 | 2 |
| 31/B | Q | 5 | 22 | 22.5 | 9.5 | 5 | 1.552 | 2 |
