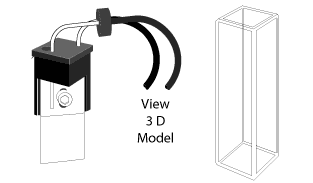

Starna^® Coverslip Cuvette mount

Microscope coverslip mount
Available complete with matching cell
Use of a standard size coverslip (11 x 22 mm).
Syringe injection ports.
Media exchange for perifusion experiments.
complete with 5 spare coverslips
Compatible with magnetic stirring

Starna has added the newly developed coverslip holder to its range of products, enabling the fluorescence of cultured cells to be measured without a microscope.

G = Optical Glass 334 - 2500nm

SOG = Special optical Glass 320 - 2500nm

Q = Far UV Quartz 170 - 2700nm

Securely locates the coverslip in a defined orientation (45º relative to the instrument excitation beam), whilst retaining the ability to easily exchange slides.

Suspends the coverslip above the bottom of the cuvette, allowing the use of a small stirring bar in the bottom of the cell.

Rigidly suspends the coverslip so that it's centre is at the optical beam centre 15 mm above the base
of the cuvette.

Manufactured in stainless and black PET (polyethethylene terephthalate).

Starna Type	Material Type	Path Length	External			Internal Width	Nom Vol	No of Polished
Starna Type	Material Type	Path Length	length	Width	Height	Internal Width	Nom Vol	No of Polished
No	Available	mm	mm	mm	mm	mm	ml	Windows
3/CSA	G/SOG/Q	10	12.5	12.5	45	10	3.500	4 + Base
