Starna® Cells Type 9 & 29-F Semi micro & Types 18 & 28-F Micro

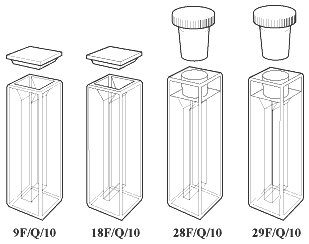

Micro and Semi micro Fluorimeter cells
Special optical Glass SOG = Special optical Glass 320 - 2500nm
Far UV Quartz Q = Far UV Quartz 170 - 2700nm

 For use with fluorometers
fits 12.5mm square cell holders
10mm Pathlength
Four polished windows with 3mm base.
Types 9 & 18 open topped, supplied with non     sealing cover.
Types 28 &29 PTFE stopper to fit. Liquid tight
     for up to 12 hours
see accessories for spares
Search Quote
Starna Catalogue Windows
Material 		Path
Length 		External Internal Nom
Vol 		No of
Polished
Width Length Height Width Length
Number Choice mm mm mm mm mm mm ml Windows
9F SOG/Q 10 12.5 12.5 45 4 10 1.400 4
18F SOG/Q 10 12.5 12.5 45 2 10 0.700 4
28F SOG/Q 10 12.5 12.5 48 2 10 0.700 4
29F SOG/Q 10 12.5 12.5 48 4 10 1.400 4
9/9-F SOG/Q 10 12.5 12.5 45 4 10 1.160 4
18/9-F SOG/Q 10 12.5 12.5 45 2 10 0.580 4
28/9-F SOG/Q 10 12.5 12.5 48 2 10 0.580 4
29/9-F SOG/Q 10 12.5 12.5 48 4 10 1.160 4
