Starna® Fluorimeter Cells, Type 73F flow through

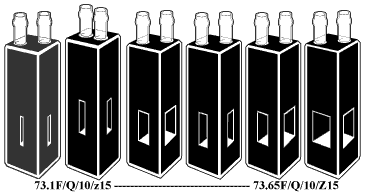

Fluorimeter Cells, Type 73F flow through
"Z" dimension is critical as the cell sample compartment must be correctly aligned in the instrument light beam, (see "Z" compatibility.
Far UV QuartzQ = Far UV Quartz 170 - 2700nm

 3 Polished windows
Available Z dimensions: 8.5, 15
Path Lengths:1, 1.5, 3, 10mm
Fully masked cell with rectangular      aperture, optimized for best flow      characteristics in instruments with a      narrow beam geometry,
Beam width up to3.5 mm with
    the exception of 73.65-F beam width      up to 6 mm
Z compatibility Quote
Glass or quartz tubulations as appropriate, permanently fused to the top of the cell, allow for simple and      secure push on or sleeved connections using flexible tubing such as silicone rubber or PVC
Fluorimeter Cells, Type 73F flow through
Starna
Catalog		 Windos
Material		 Path
Length 		Exterior Sample chamber 'Z' Nominal
Volume		 Number
Polished
Height Width Length Height Dimension
Number Choice mm mm mm mm mm mm ml Windows
73.1-F Q 10 48 1 10 11 8.5 / 15 0.110 3
73.2-F Q 10 48 2 10 11 8.5 / 15 0.220 3
73.4-F Q 10 48 4 10 11 8.5 / 15 0.440 3
73.65-F Q 10 48 6.5 10 11 8.5 / 15 0.715 3
73.1.8-F Q 1 48 1 1 8 8.5 / 15 0.008 3
73.15-F Q 1.5 48 1.5 1.5 11 8.5 / 15 0.025 3
73.3-F Q 3 48 3 3 11 8.5 / 15 0.100 3
