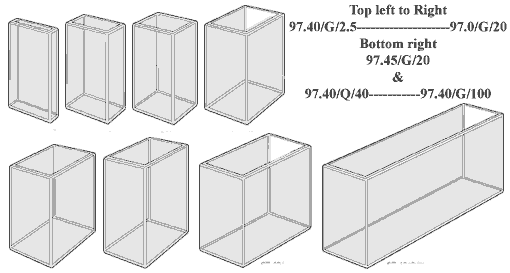

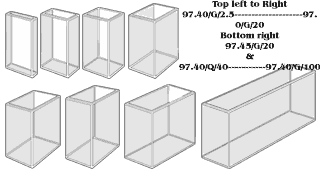

Starna® Colorimeter cells Type 97

Colorimeter cells Type 97 Optical Glass G = Optical Glass 334 - 2500nm

TwoClear windows
Open top, no cover
Pathlengths available:2.5, 5, 10, 20, 50 &      100mm
Glass cell with wide, tall window,& U
      shape wall construction
Quote

Starna
Catalogue		 Path
Length		 Exterior Interior
Width		 Nominal
Volume		 Number
Polished
Width Length Height
Number mm mm mm mm mm ml Windows
97.40/G 2.5 20 6.5 40 16 1.4 2
97.40/G 5 20 9 40 16 2.8 2
97.40/G 10 20 14 40 16 5.6 2
97.40/G 20 20 24 40 16 11.20 2
97.40/G 40 20 44 40 16 22.40 2
97.45/G 40 20 44 45 16 25.60 2
97.40/G 50 20 54 40 16 28.00 2
97.40/G 100 20 104 40 16 56.00 2
