Starna® Colorimeter cells X-Rite compatible
 |
 G
= Optical Glass 334 - 2500nm |
Glass cell |
|
|
Open top, no cover |
Two Clear windows |
Pathlengths available:2.5, 5, 10, 20,40 & 100mm |
|
| Starna Catalogue |
Path Length |
Exterior | Interior | Nominal Volume |
Number Polished |
|||
| Width | Length | Height | Width | Length | ||||
| Number | mm | mm | mm | mm | mm | mm | ml | Windows |

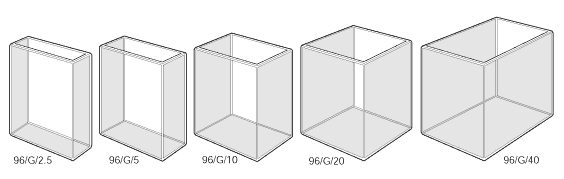

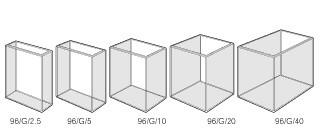

| 96/G/2.5 | 2.5 | 28 | 8.5 | 40 | 24 | 2.5 | 1.8 | 2 |
| 96/G/5 | 5 | 28 | 11 | 40 | 24 | 5 | 3.6 | 2 |
| 96/G/10 | 10 | 28 | 16 | 40 | 24 | 10 | 7.2 | 2 |
| 96/G/20 | 20 | 28 | 26 | 40 | 24 | 20 | 14.0 | 2 |
| 96/G/40 | 40 | 28 | 46 | 40 | 24 | 40 | 28.0 | 2 |
| 96/G/100 | 100 | 28 | 106 | 40 | 24 | 100 | 70.0 | 2 |
