Starna® Colorimeter cells for Hunter, ACS, Data Color and others

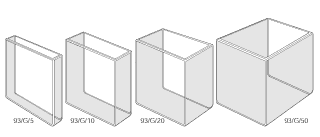

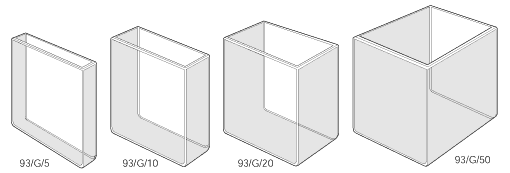

Colorimeter cells Type 93, click to enlarge Optical Glass G = Optical Glass 334 - 2500nm
Two Clear windows
Open top, no cover
Pathlengths available:5, 10, 20 & 50mm
Glass cell with wide, tall window,& U shape wall construction
quote for colorimeter cell cuvette

Starna
Catalogue		 Path
Length		 Exterior Interior Nominal
Volume		 Number
Polished
Width Length Height Width Length
Number mm mm mm mm mm mm ml Windows
93/G/2 2 55 6 56 51 2 5.0 2
93/G/5 5 55 9 56 51 5 12.5 2
93/G/10 10 55 14 56 51 10 25 2
93/G/20 20 55 24 56 51 20 50 2
93/G/30 30 55 34 56 51 30 75 2
93/G/50 50 55 54 56 51 50 125 2
